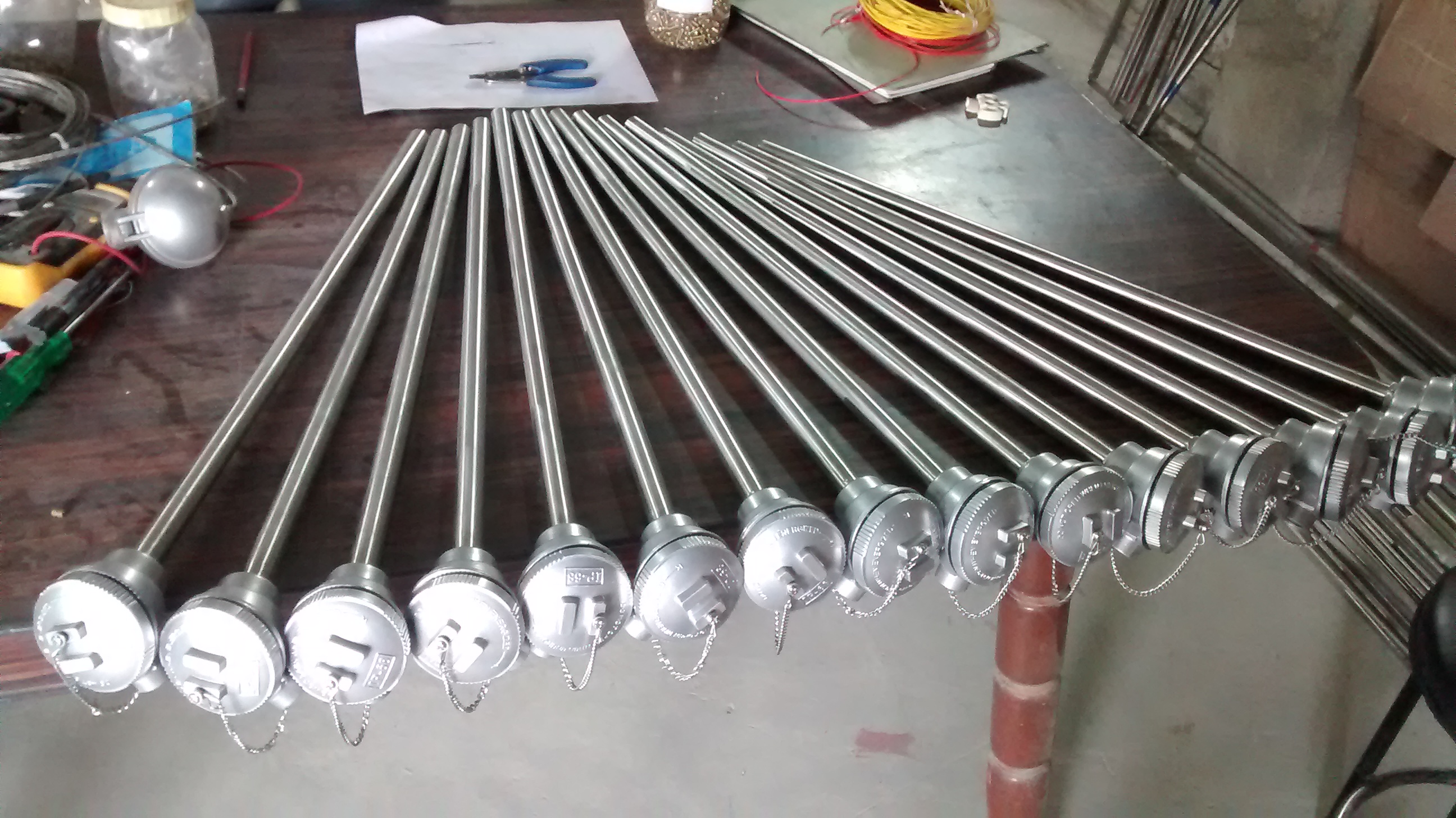

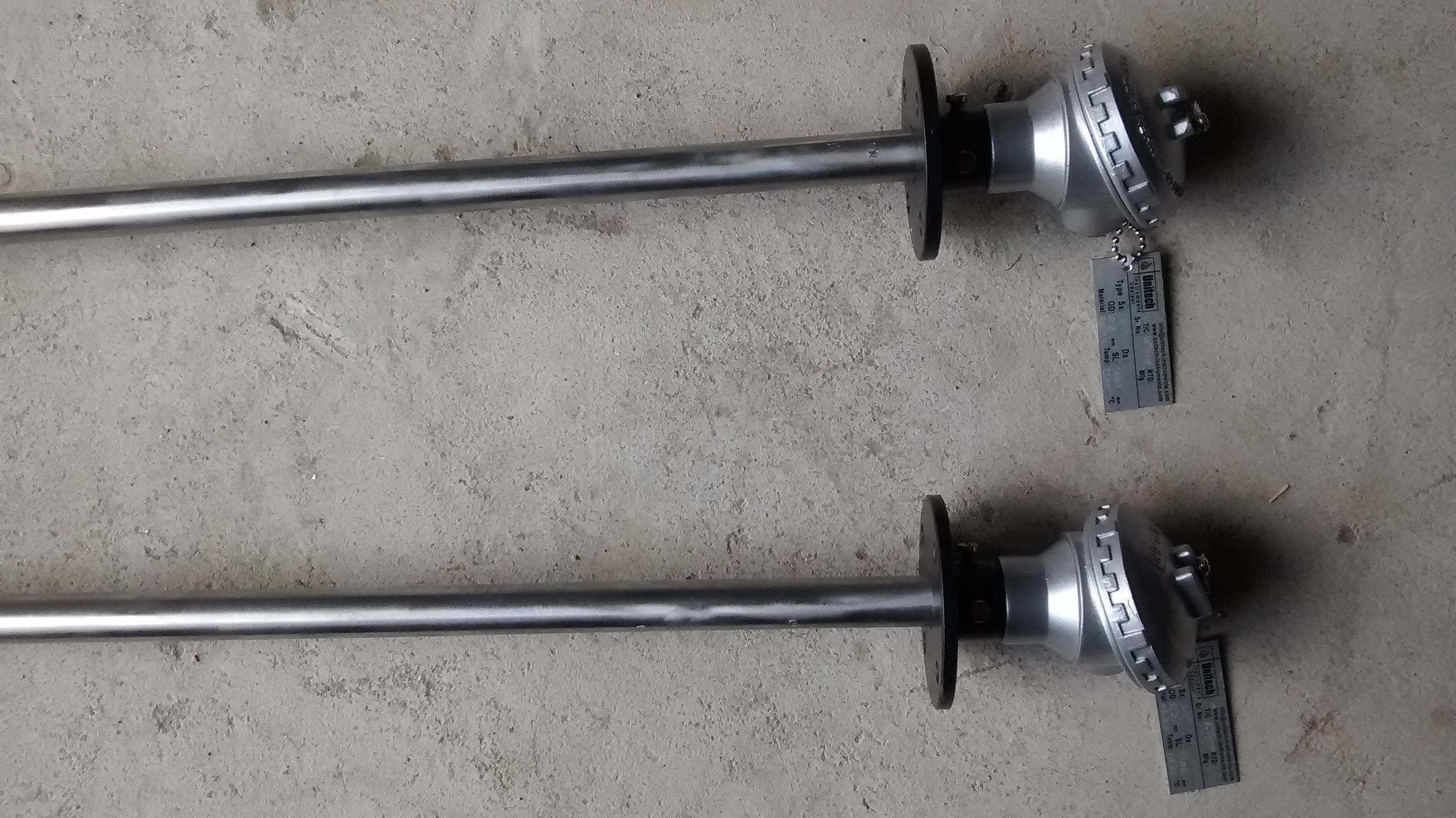

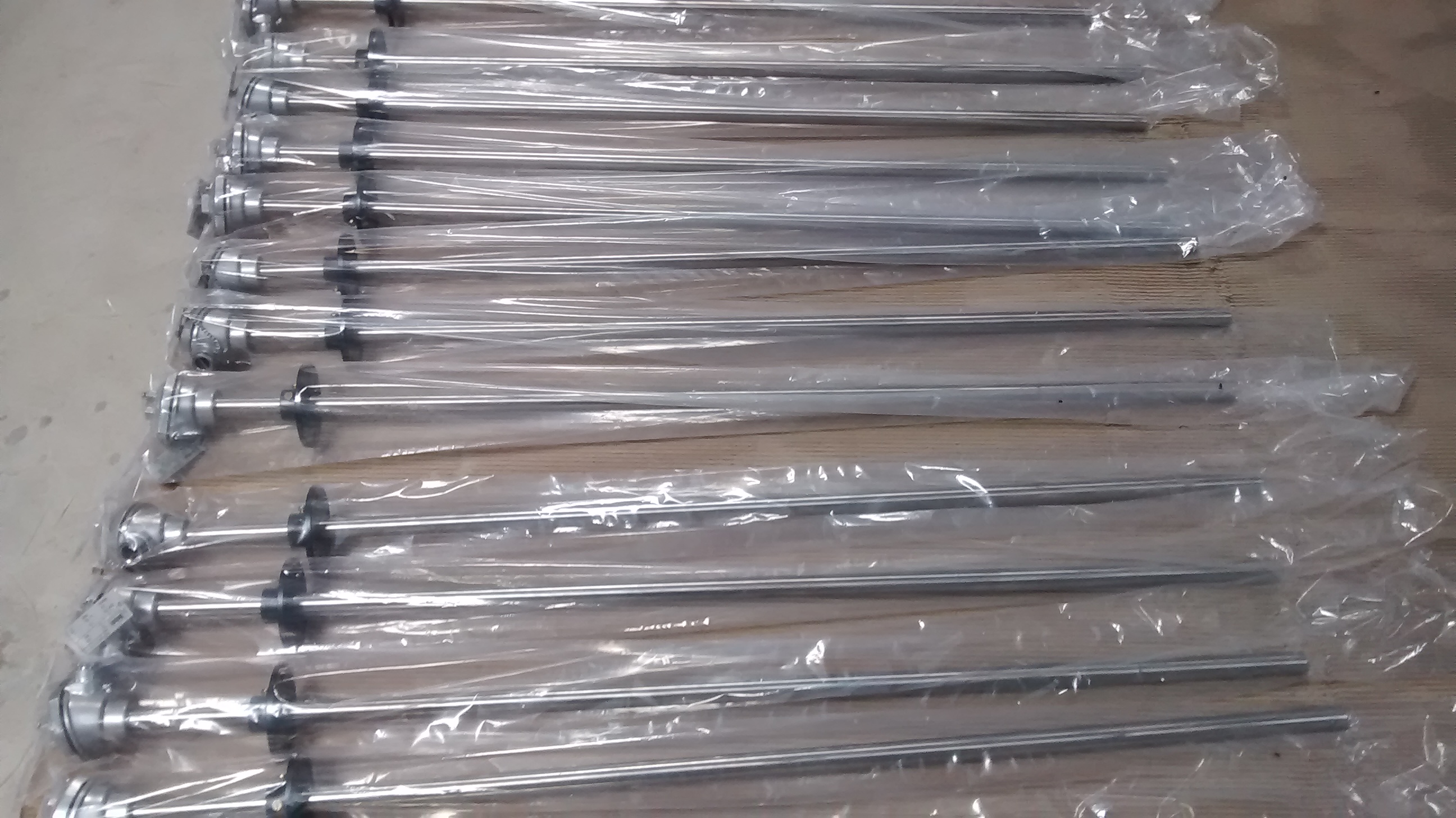

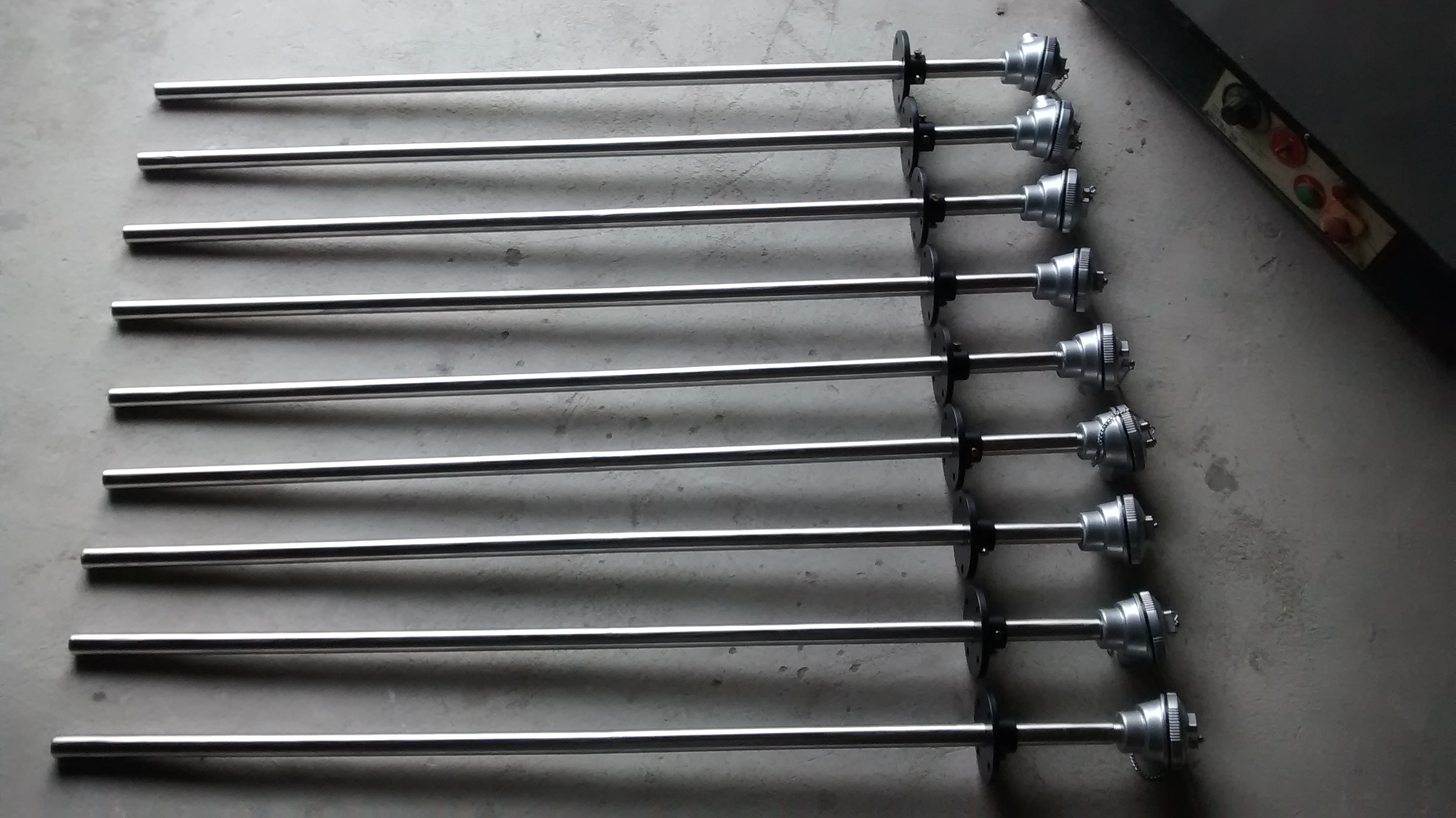

Thermocouples are made with ceramic protection tube and noble metal protective tube. Mostly used in glass industry for the temperature measurement of molten glass. The temperature measurement range upto 1800 deg cel. These thermocouples are also designed in double protection tubes for the extending the life of thermocouple.
Ceramic Protection Tubes:
KER 710/ C799/ Precious Metal Tube
Type:
R, S & B
R-> Pure Pt; Pt/RH- 87%/13%
S-> Pure Pt; Pt/RH- 90%/10%
B->Pt/RH- 70%/30%; Pt/RH- 94%/6%
Configuration:
Simplex / Duplex
Size:
0.35 mm, 0.40 mm, 0.42 mm, 0.45 mm & 0.5 mm
Outer Sheath:
SS316, SS310, Inconel 600, Inconel 601, etc.
Table:
Type | Configuration | Temperature |
---|---|---|
S | Pure Pt; Pt/Rh- 90%/10% | 1600 Deg Cel |
R | Pure Pt; Pt/Rh- 87%/13% | 1600 Deg Cel |
B | Pt/Rh- 70%/30%; Pt/Rh- 94%/6% | 1800 Deg Cel |
