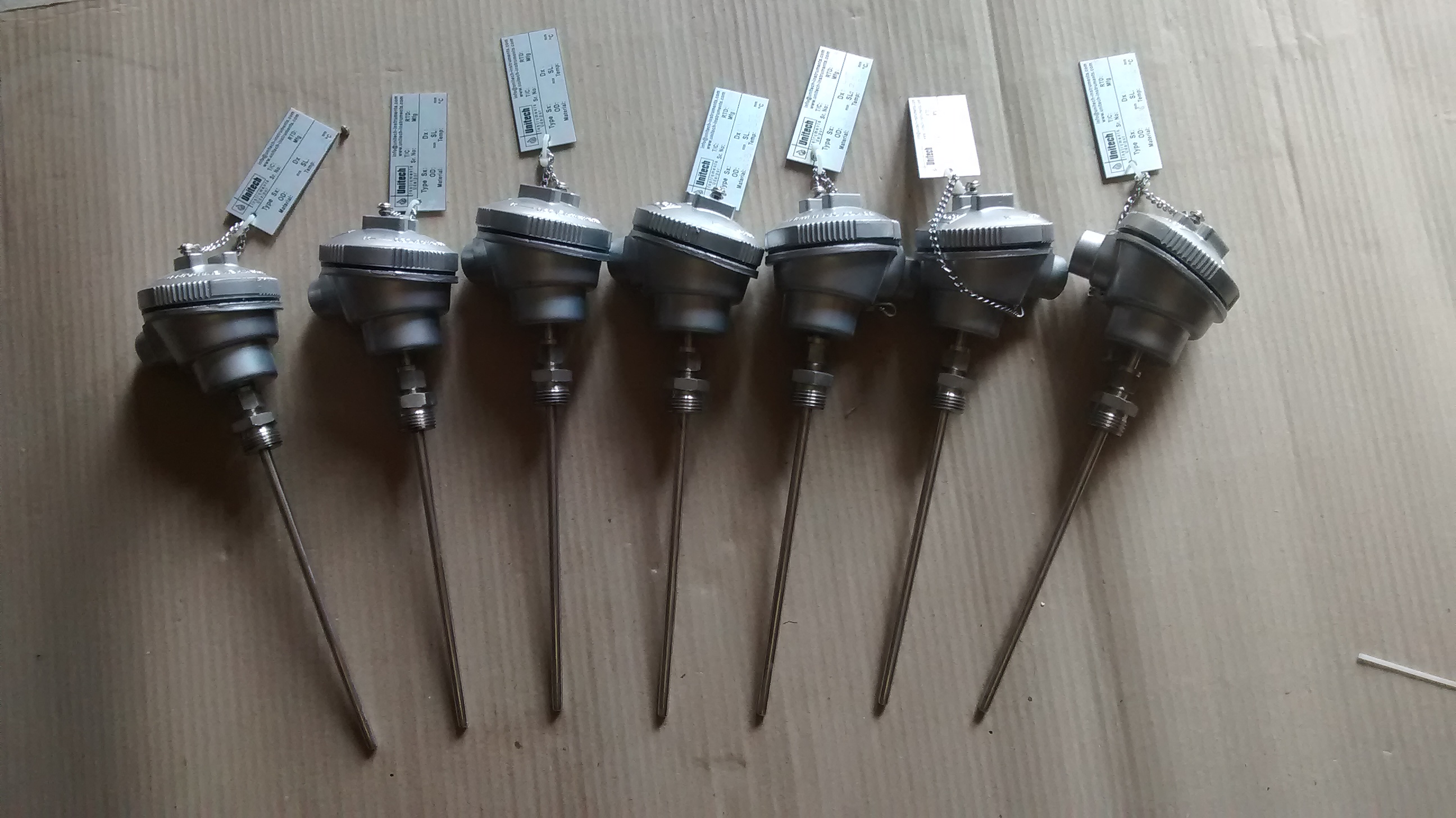

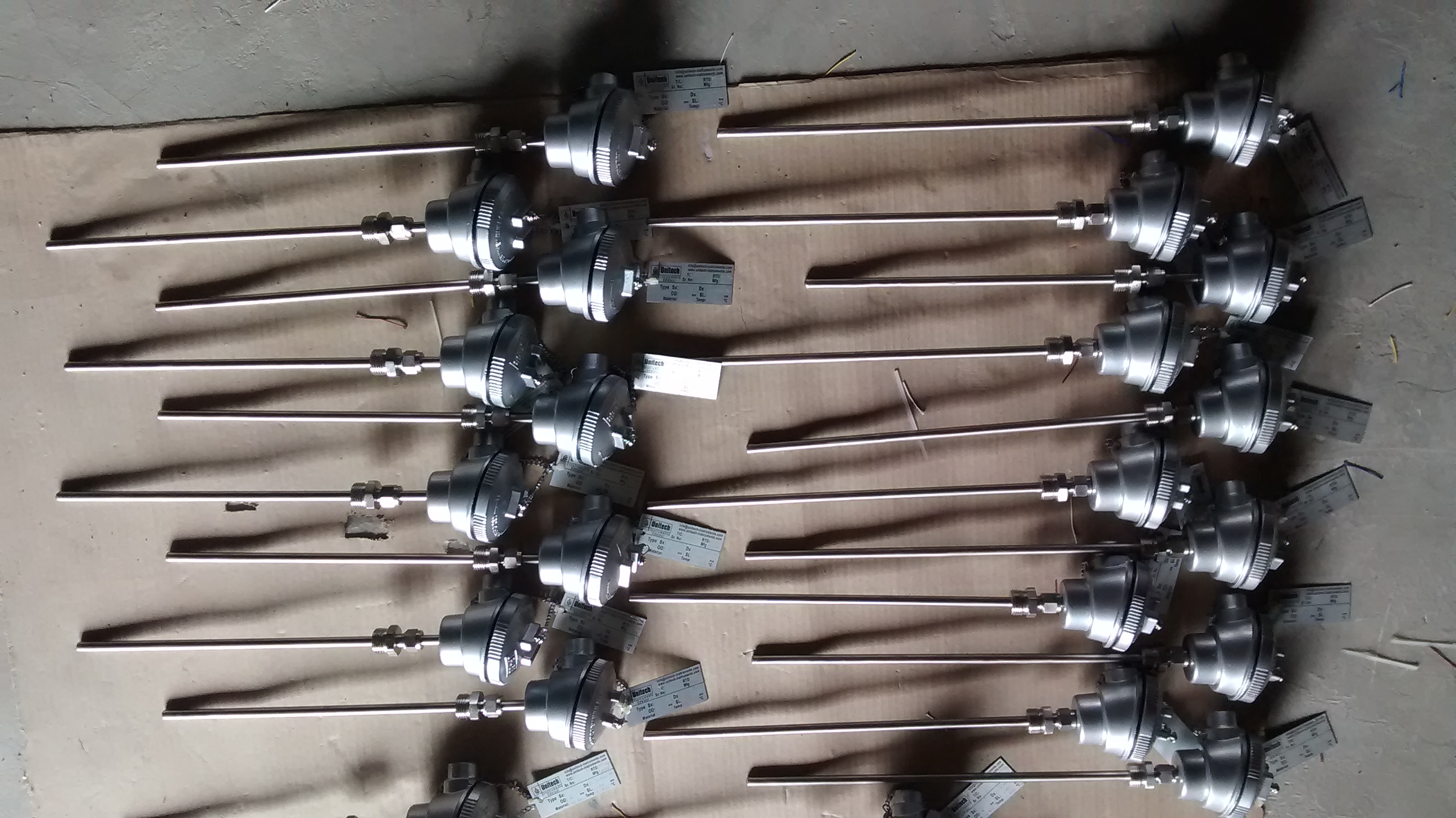

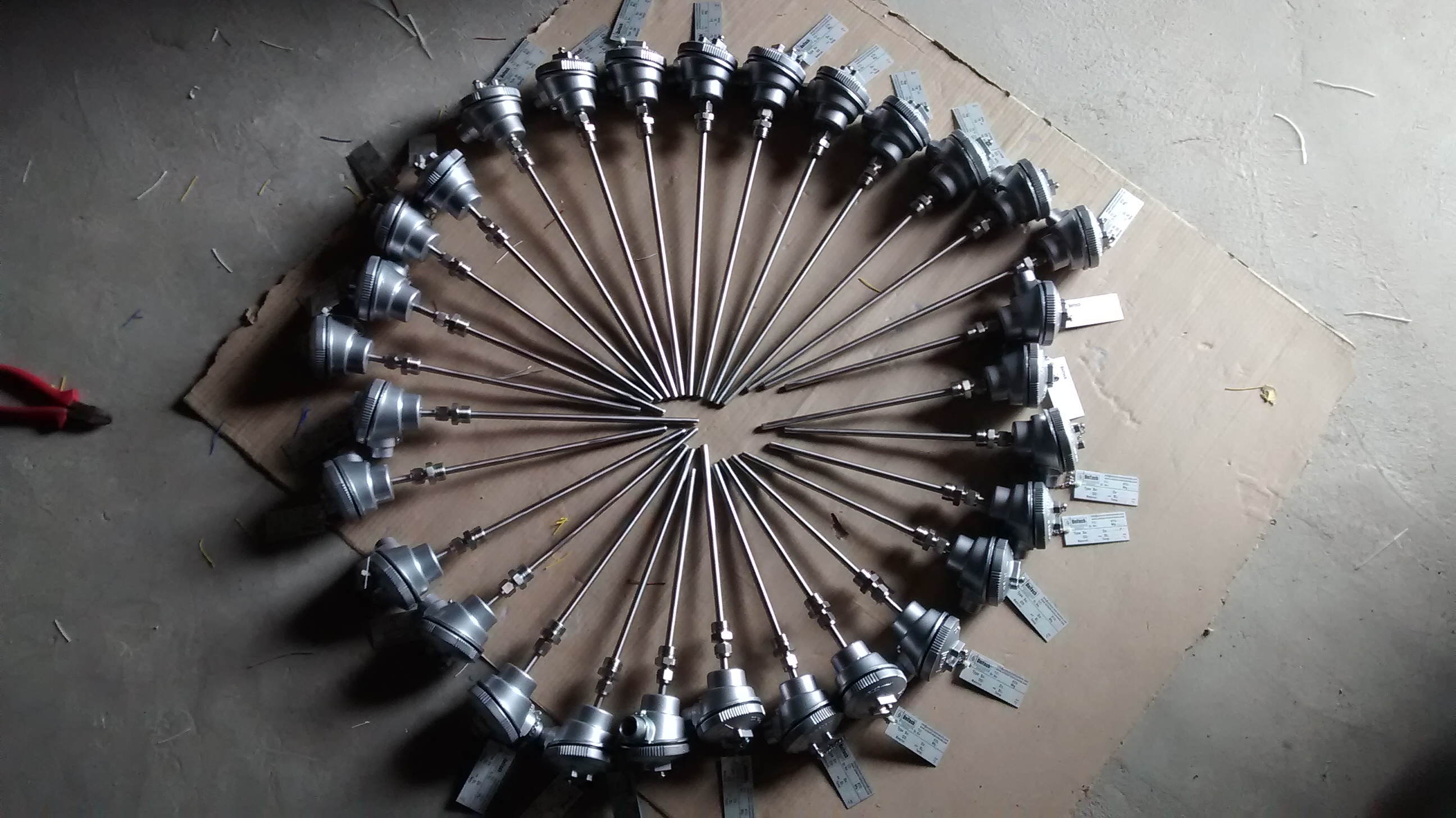

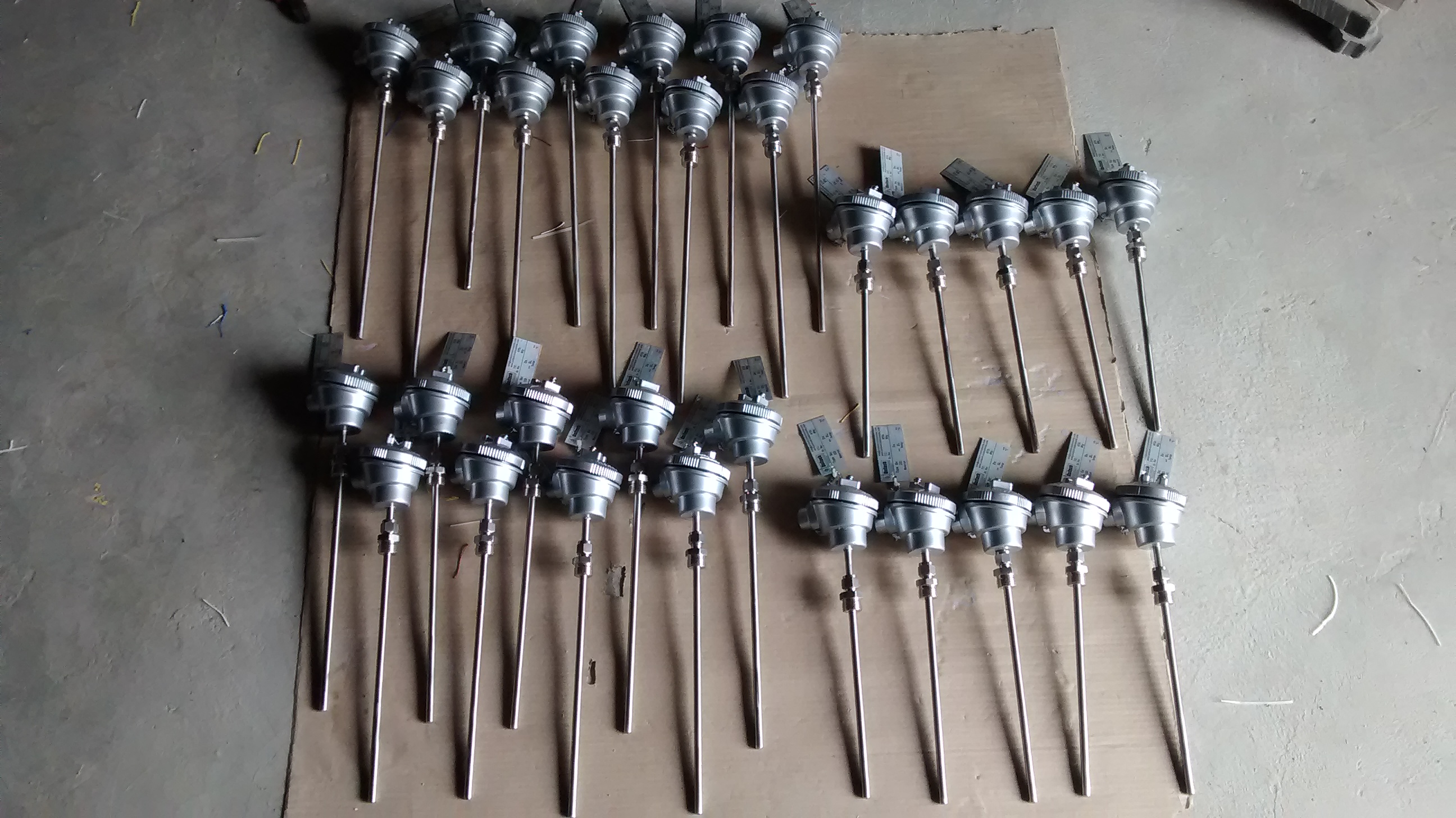

RTD without Protection Tube
RTDs without protection sheath are generally used for temperature measurement upto 600 deg cel. They are suited for surface temperature measurement as well as measurements of liquid and gases. Depending on connection type, RTD consist of 2, 3, 4 & 6 copper feed lines/ Conductors which are insulated in MgO powder and are surrounded by metallic sheath. The resistor is connected to the inner conductors
Type:
Pt 100, 200, 500, 1000 etc
Configuration:
Simplex / Duplex
Adjustable fittings:
1/4" BSP, 1/2" BSP, 3/8" BSP, 3/4" BSP, 1/4" NPT, 1/2" NPT, 3/8" NPT, 3/4" NPT
Available in both MI and Non MI configuration with connection heads and compressor fittings of various sizes.
Connection:
2, 3, 4 & 6 Wire.
Applications:
Motor Bearing
Gearbox
Plastic Industry
Chemical Power Plants
