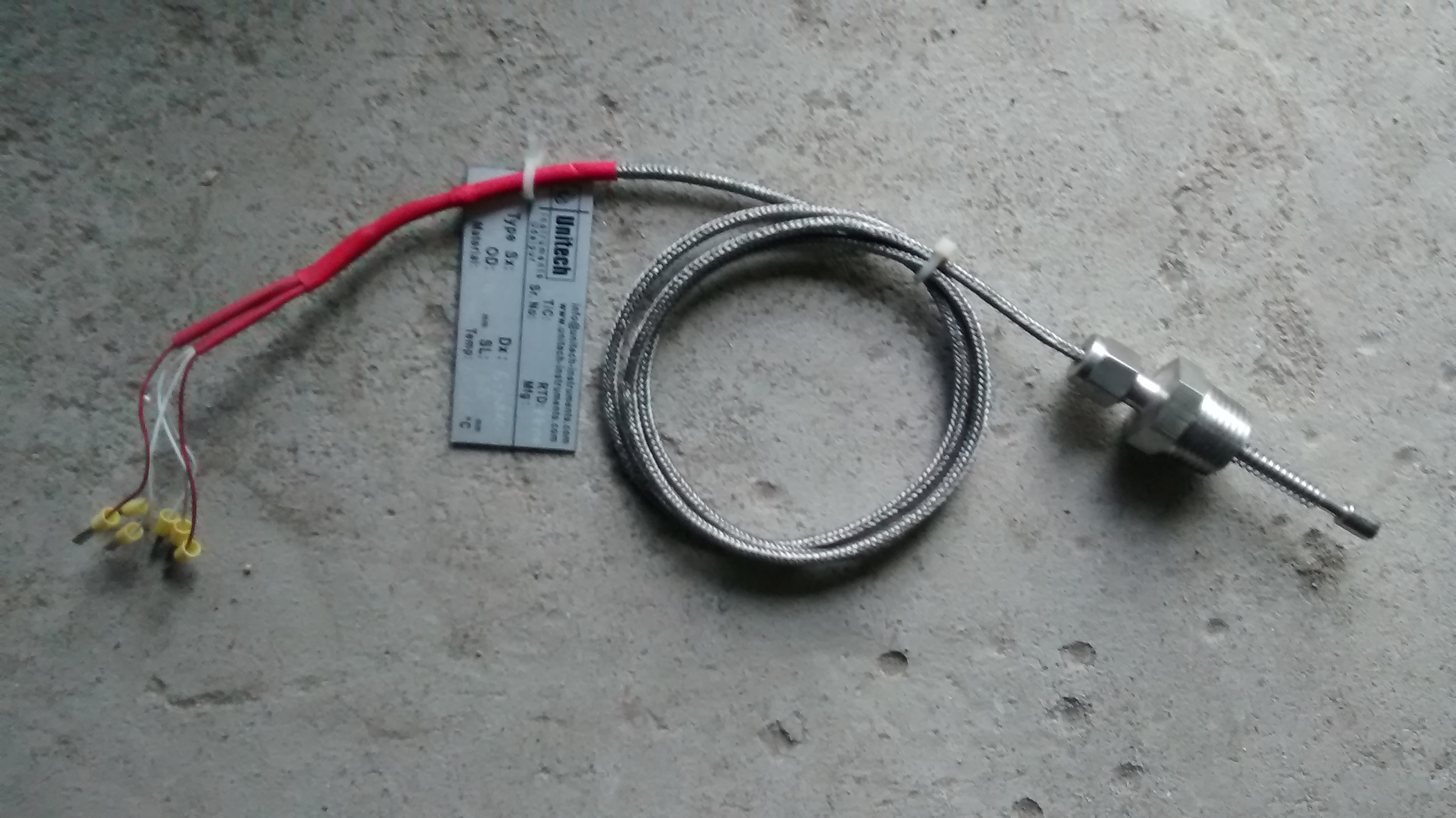

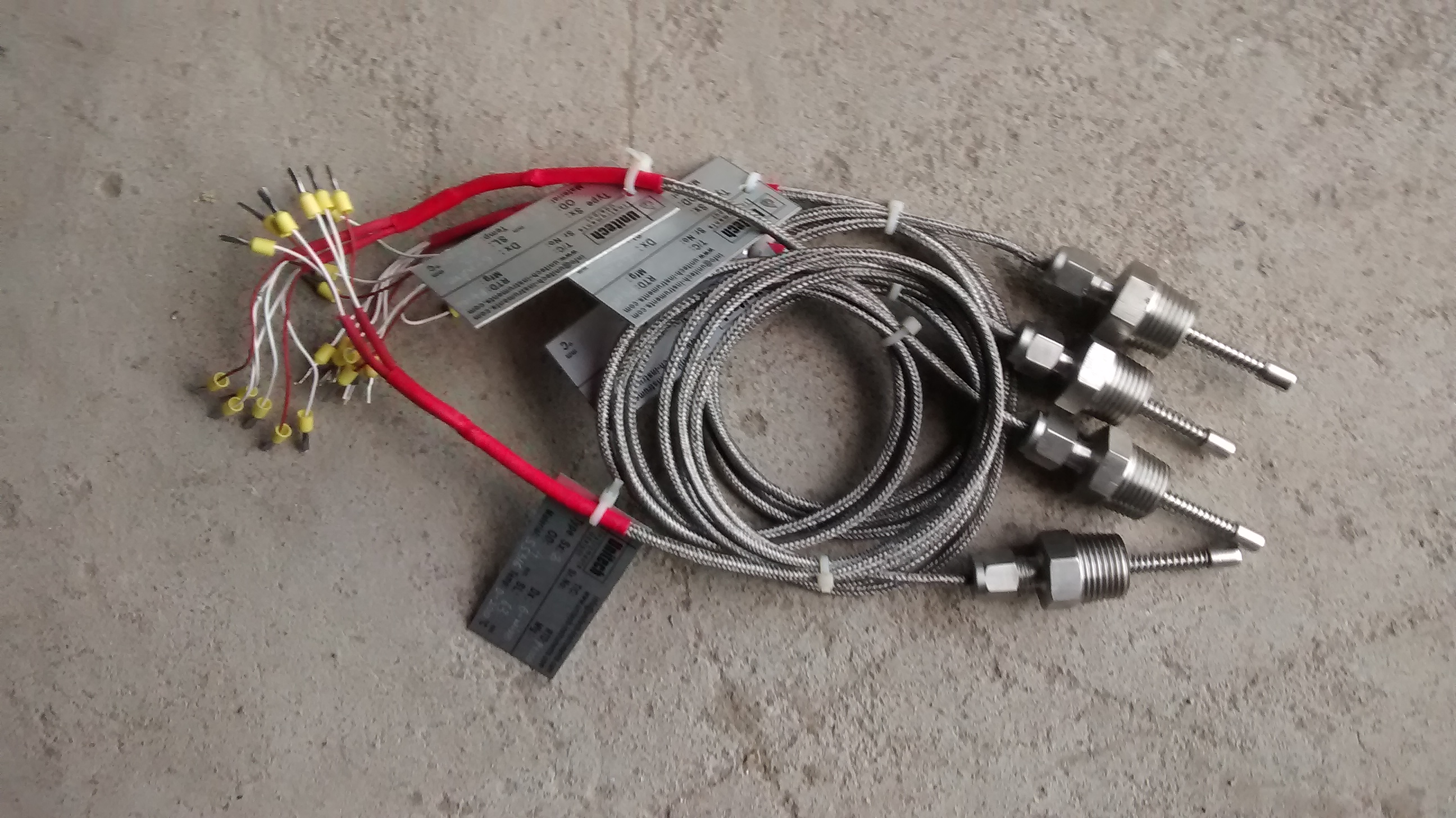

A. Spring Loaded with Bayonet Fitting:
RTD with Bayonet connection is specially recommended for measuring temperature for special purpose. Bayonet Connectors with spring are giving flexibilities for sensing and measuring the temperature.
RTD is designed in the form of tip with pressure spring along with cable supported by spring for flexibility.
Type/ Measuring element are:
Pt 100
Configuration:
2, 3, 4 wire
Connector:
Bayonet fitting with spring
Applications:
B. Button Type:
Button type RTD is used for temperature measurement of the surface. It is mounted with the help of a magnet which can make RTD in contact with the surface whose temperature is to be measured.
Type/ Measuring element are:
Pt 100
Configuration:
2, 3, 4 wire
Connector:
Bayonet fitting with spring
Applications:
