1. Solid Conductor

2. Stranded Conductor

Copper is widely used as conductor in Cables.

Nickel Plated Copper (NPC), Tinned Plated Copper (TPC), Silver Plated Copper (SPC) and Bare copper (ABC) are various types of Copper Conductor

Used with Thermocouple sensors, they are connected to measure temperature.

TYPES OF THERMOCOUPLE CABLES:

1. Thermocouple Grade Conductor
2. Extension Grade Conductor
3. Compensating Grade Conductor

Generally Extension and Compensating Cables are connected to Thermocouples to measure temperature.

TECHNICAL SPECIFICATIONS:

1. Construction: Single and Multi Pair
2. Conductor: Thermocouple Grade, Extension Grade and Compensating Grade
3. Size of Conductor:
4. Type of Conductor: J, K, N, E, T, R, S, B
5. Strand: Solid and Multi Strand
6. Core Insulation: PVC, PTFE, Silicon, Fiber Glass, Ceramic Fiber, etc.
7. Outer Sheath: PVC, Teflon, Fiber Glass, Ceramic Fiber, Asbestos
8. Screening:
9. Armouring: SS Braided
10. Voltage: 1100 kV
11. Standard:

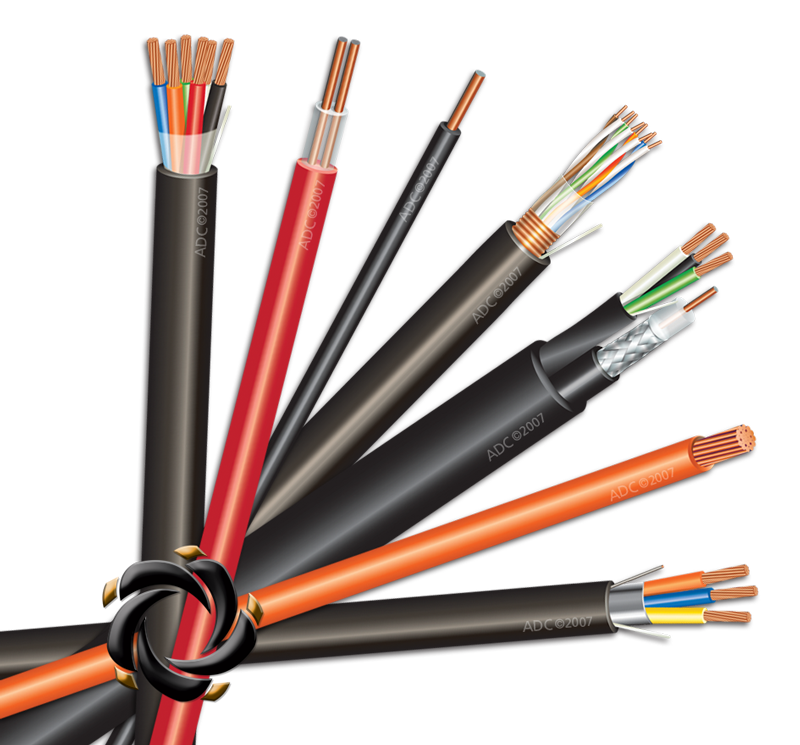

It is used to minimize the distortion of the noise and signal interference and delivering the signal in accurate manner. These type of Cables don’t get affected with respect to the environment and the operational conditions. So basically these cables are called to carry the signal from a distant sensor to the junction or controller.

TECHNICAL SPECIFICATIONS:

1. Construction: Single and Multi Pair
2. Conductor: TPC, NP, SPC, ABC
3. Size of Conductor:
4. Strand: Solid and Multi Strand
5. Core Insulation: PVC, PTFE, Silicon, Fiber Glass, Ceramic Fiber, etc.
6. Outer Sheath: PVC, Teflon, Fiber Glass, Ceramic Fiber
7. Screening:
8. Armouring: SS Braided
9. Voltage: 1100 kV
10. Standard:

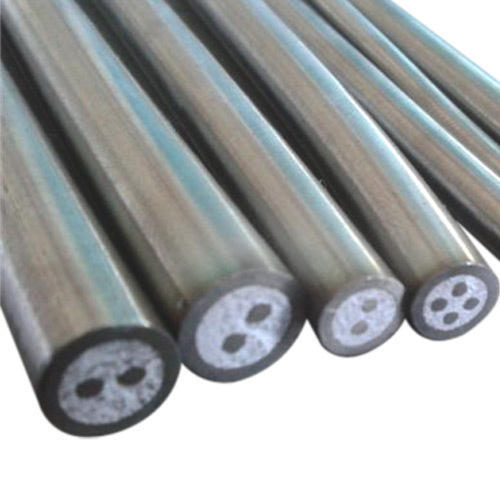

As the name suggests, this cable is made from conductors inside a metallic sheath insulated by inorganic magnesium oxide powder.

1. Thermocouple Cables

Available in various types, sheaths, cores and sizes.

Type J:

1.5 mm, 03 mm, 4.5 mm, 6 mm and 8 mm

Type K:

1.5 mm, 03 mm, 4.5 mm, 6 mm and 8 mm

Type N:

03 mm, 06 mm and 08 mm

Type E:

4.5 mm and 06 mm

Core:

Simplex and Duplex

Sheath material :

SS 316, SS 321, SS 310 and Inconel 600

---

2. RTD Cables

Available in various sheath material / core and size.

Size:

4.5 mm, 06 mm and 08 mm

Core :

2 core, 4 core and 6 core

Sheath Material :

SS 316 / SS321

---

3. Copper Cables

We deal in and supply various types of MI Cables as per customer’s requirement or as application demands.
