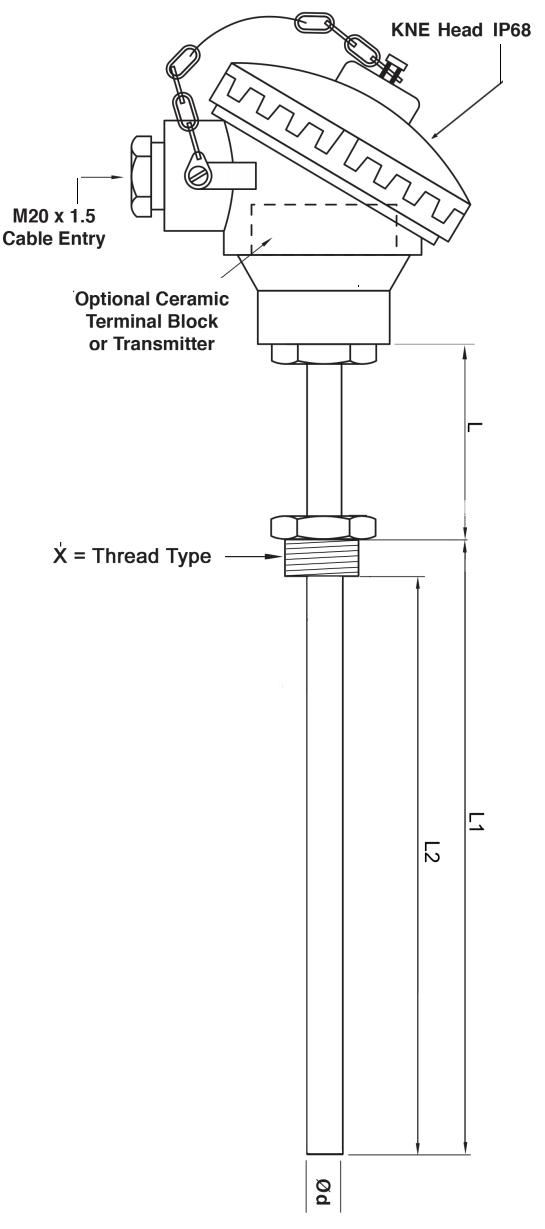

Thermocouple with Ceramic Protection Tube

Thermocouples are made of different shapes straight or L-shaped for measurement of temperature in liquid/ gaseous state upto a range of 1200 deg celcius. Ceramic protection tubes are made up of KER710/ KER610/ Silicon Carbide/ Silicon Nitride/ Nitride bonded Silicon Carbide/ Graphite/ Recrystallised.

Types:

K, N, R, S, B

Configuration:

Simplex / Duplex / Triplex / Multi Point

Protection Tube Material:

KER 610, KER 710, C799 and Silicon Carbide

Sizes:

Element size 0.30, 0.35, 0.40, 0.45, 0.50 mm and others are available on request.

Calibration Standard:

ANSI MC 96.1

Termination Type:

Head Assembly

Applications:
