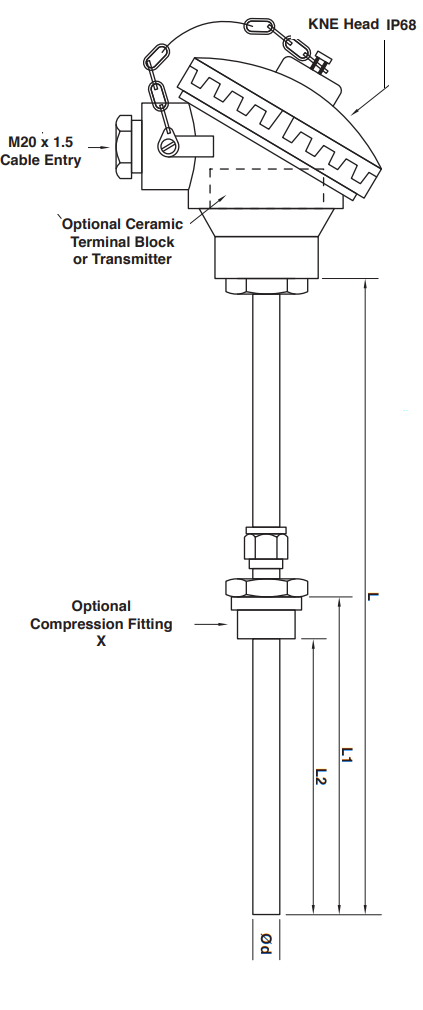

Thermocouple with Metal Protection Tube

Thermocouples are made with metal protection tubes of different shapes. Straight or L-shaped for measurement in liquid, gaseous and plastic medium upto maximum temperature 1200 deg cel. Metal protection tubes are made of SS316, SS310, inconel 600/601 ,Incoloy 800/Haste Alloy.

Types:

K, N, E, R, S, B

Configuration:

Simplex / Duplex / Triplex / Multi Point

Protection Tube Material:

HRS 446 / SS 316 / SS 316 L / SS 310 / Inconel 600 / Incoloy 800 / Hastealloy / Etc

Sizes:

12 mm to 40 mm and others are available on request.

Calibration Standard:

ANSI MC 96.1

Termination Type:

Head Assembly

Applications:
