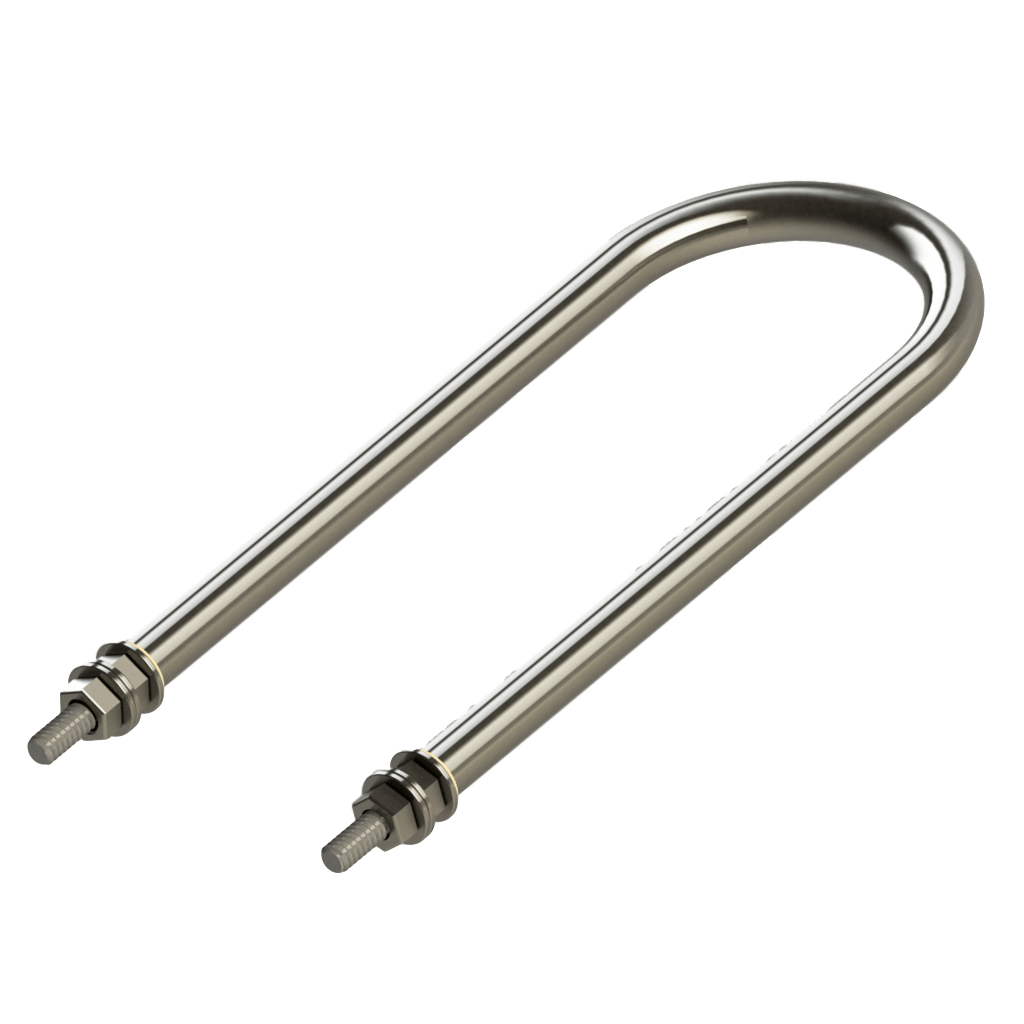

1. TUBULAR HEATERS-
Tubular heaters perform exceptional heat transfer by Conduction, Convection or Radiation to heat liquids, air, gases and surfaces.
Types of Tubular Heaters available:

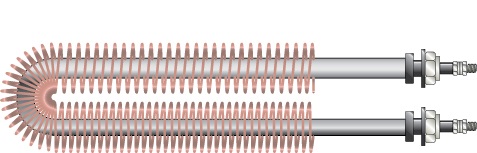

a. Finned Tubular Heaters
Sheath Material:
SS 304, SS 316, Incoloy 800
Temperature Range:
upto 500 Deg. Celsius
Material of Fin:
MS, SS
Application:
- Air heating Corrosive Liquid
- Radiant Heating
- Plating and Pickling Solutions
- Acids

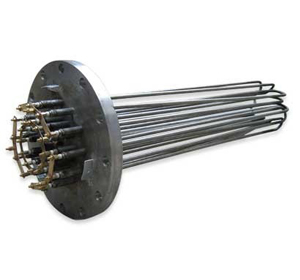

b. Flanged Immersion Heaters
Sheath Material:
SS 304, SS 316, Incoloy 800
Temperature Range:
upto 900 Deg. Celsius
Material of Flange:
SS, MS
Application:
- High temperature Oven and Furnaces
- Drying
- Vacuum Application
- Fluidized Beds
- Desulphurization

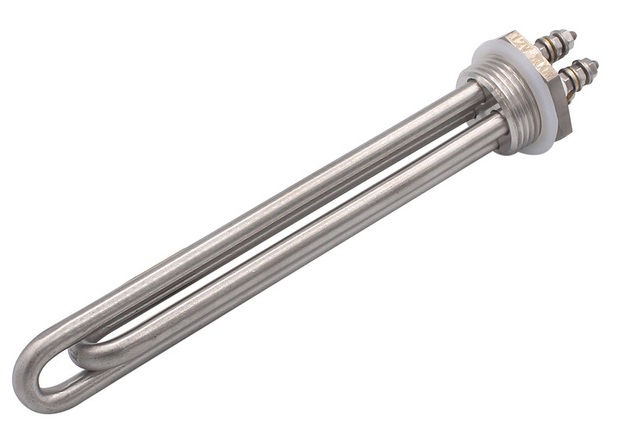

Sheath Material:
SS 304, SS 316, Incoloy 800
Temperature Range:
upto 800 Deg. Celsius
Material of Flange:
Brass, MS, SS
Application:
- Corrosive Solutions
- Oil-Heavy Weight
- Water
- Small Tank
- Dishwasher
These are capable of producing high power than conventional heating elements. Bundle Rod heaters combined with radiant tubes produce high power output.
Heating Element:
Kanthal APM, Kanthal A1, Nikrothal 80:20
Temperature Range:
upto 1100 deg. Celsius
Radiant Tube:
Kanthal APM, Inconel 600, SS 310
Available in different sizes viz. Diameters and lengths.
Application:
- Incinerators
- Die Casting machines
- Heat treat furnaces

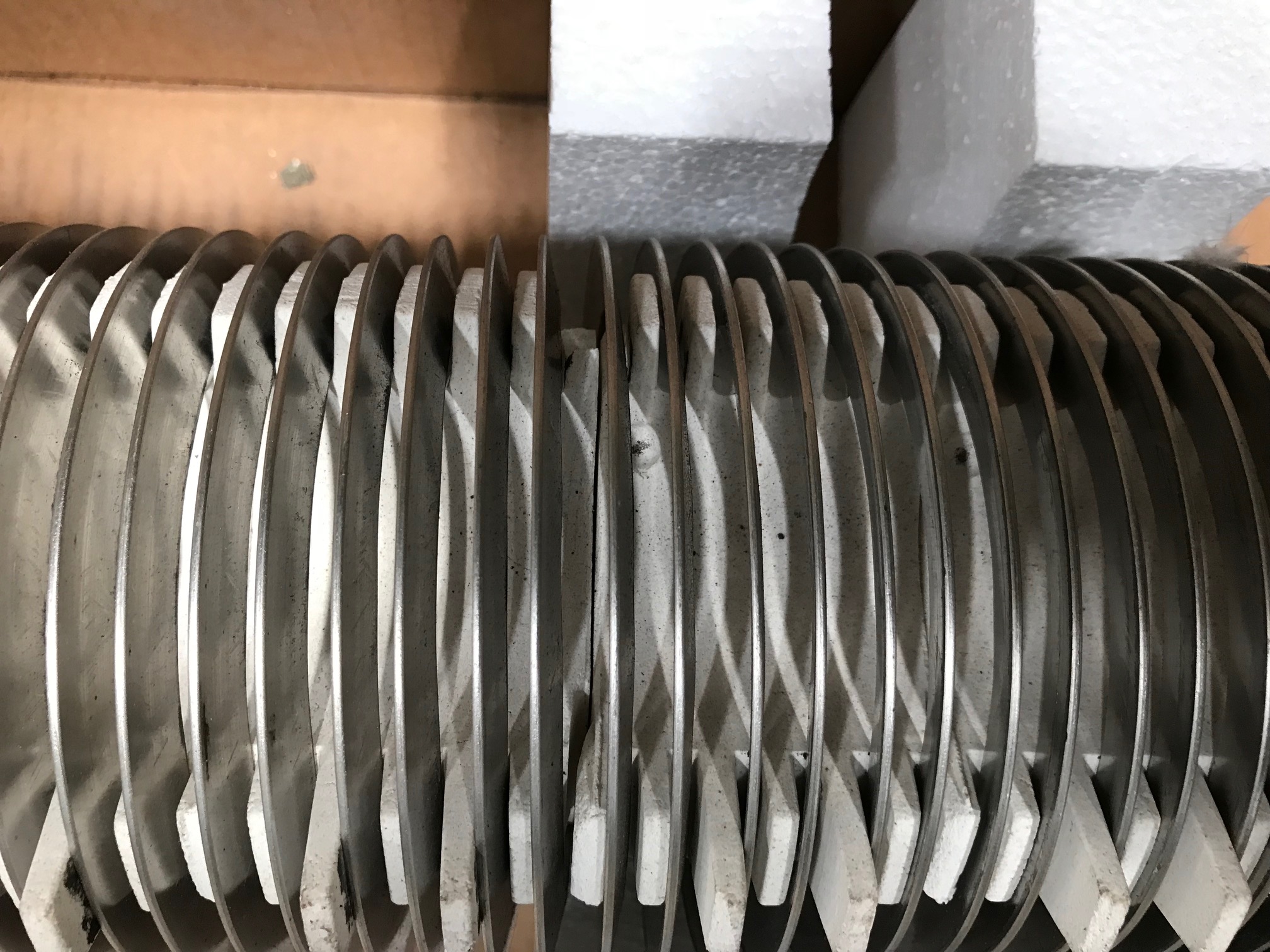

3. EDGE WOUND HEATERS+
These are used where utmost power is required in short space.
Temperature Range:
upto 1100 deg. Celsius
Heating Element:
Kanthal APM, Kanthal A1, Nikrothal 80:20
Application:
- Annealing Furnaces
- Tempering Furnaces
- Roller Hearth
4. SPIRAL HEATING ELEMENT+
These are an indirect heating solution and most efficient for duct heating industry. Fast heat up times improves efficiency.
Temperature Range:
upto 1100 deg. Celsius
Heating Element:
Kanthal A1, Nikrothal 80:20
Application:
- Duct Heating
- Tank Heating

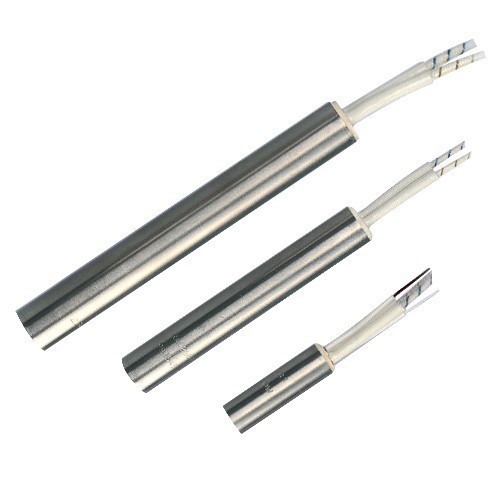

5. HIGH DENSITY CARTRIDGE HEATER+
These heaters offer a convenient and efficient means of heating metal dies, molds, hot plates and more.
High grade chromium resistance wire uniformly wound on a premium quality MgO core and welded to termination points.
Stranded leads with silicon impregnated mica glass insulation are fixed to termination points.
Temperature Range:
upto 600 Deg. Celsius
Heating Element:
Nikrothal 80:20
Application:
- Molds
- Dies
- Hot Plates
- Plastic Injection molding machines
- Aluminium Extrusion Dies
- Container Heaters

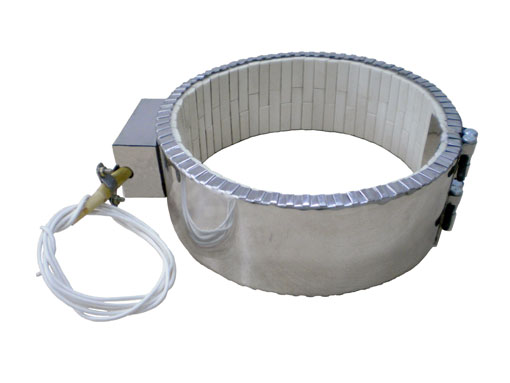

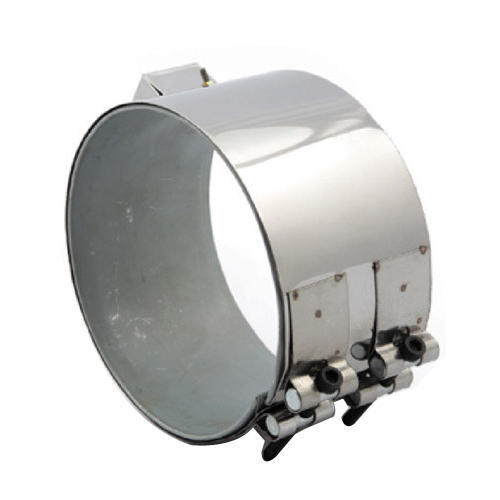

6. MICA AND CERAMIC BAND HEATERS +
These heaters provide highly concentrated heat and are light weight and portable.
Typically used on Extruder barrels, kettles and pipes. Can be wrapped in insulation to improve efficiency.
Temperature Range:
upto 250 Deg. Celsius for Mica Band and 500 Deg. Celsius for Ceramic Band
Heating Element:
Kanthal D, Nikrothal 80:20
Application:
- Barrels
- Kettles
- Cylinders
